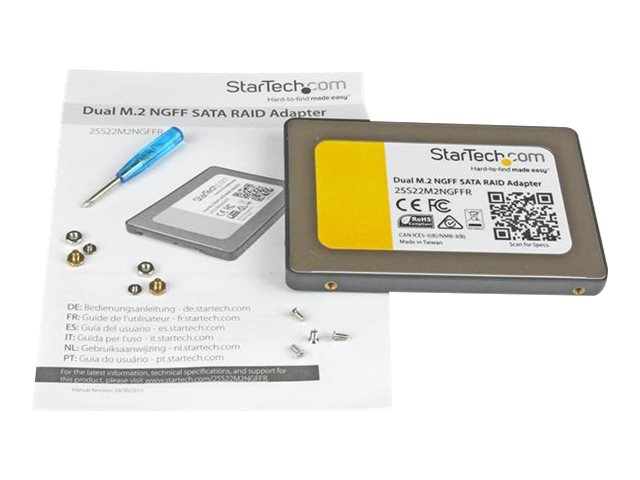

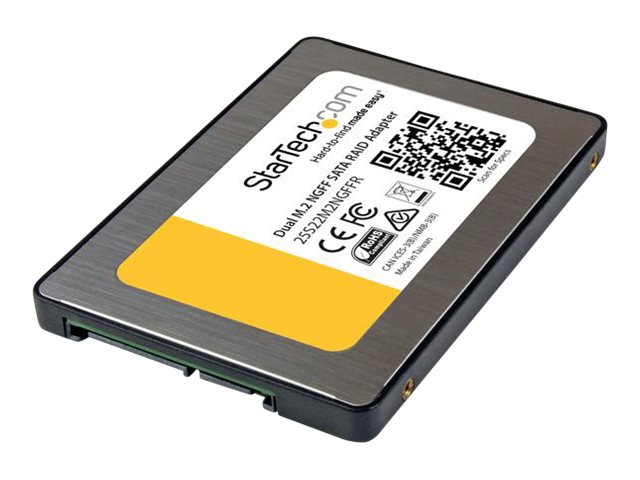

Elara StarTech.com Dual M.2 SATA Adapter With RAID

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.Install two M.2 NGFF SSDs into a 2.5" bay to create high-performance storage with configurable RAID. Boost your system performance by enhancing the capacity, speed and security of your data storage. This two-drive M.2 to SATA adapter lets you install two M.2 solid-state drives in a single 2.5" drive bay and configure a powerful RAID array.The dual M.2 to SATA adapter supports multiple RAID modes (RAID 0, 1, BIG) helping you to achieve greater SSD capacity or data redundancy, depending on your selected RAID mode. The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independent of one another.The dual SSD adapter lets you utilize the full potential of your SATA III controller. Using M.2 SSDs in place of a platter drive reduces your data transfer bottlenecks and gives you file transfer speeds of up to 6 Gbps. M.2 SSDs also save you money by reducing your power consumption over regular platter drives.The M.2 NGFF SATA RAID adapter also provides TRIM support to enhance the stability and performance of your M.2 NGFF SSDs.The M.2 to SATA adapter features an enclosed housing that helps protect your NGFF (Next Generation Form Factor) SSD. The added protection gives you peace of mind when you are using your M.2 drives in applications that require an added level of durability such as hot-swap drive bays, or external SATA docking stations.

Features Summary

• Efficient data transferAchieve a data transfer rate of up to 6 Gbps, allowing quick access and management of stored data with minimal delays.
• Versatile RAID configurationsSupports multiple RAID levels including RAID 0, RAID 1, JBOD, and BIG, providing flexibility for various storage strategies based on performance or redundancy needs.
• Compact designThe adapter's 2.5-inch form factor ensures compatibility and ease of installation within standard drive bays, making it convenient for upgrading existing systems.
• Environmentally compliantManufactured in accordance with FCC, RoHS, and WEEE standards, ensuring reduced environmental impact and adherence to regulatory requirements.
• User-friendly indicatorsEquipped with two LED indicators, providing real-time feedback on the status of SSDs connected to the adapter for easier management and troubleshooting.
