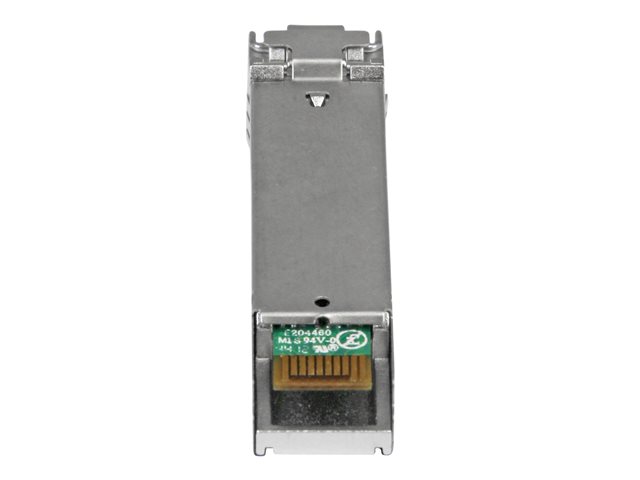

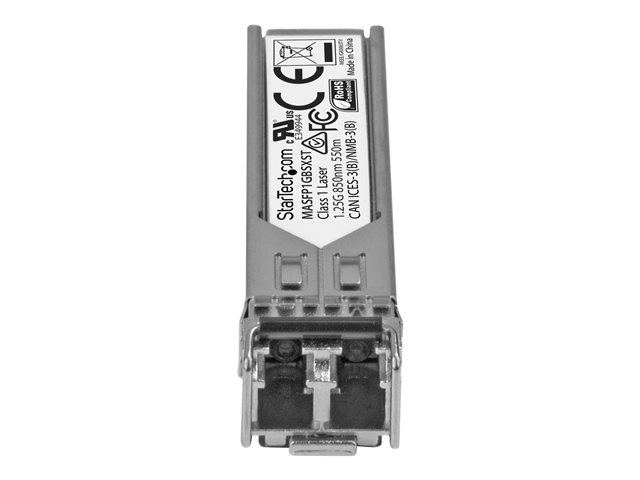

Elara StarTech.com Cisco Meraki MA-SFP-1GB-SX Compatible SFP Module 1000BASE-SX 1GbE MMF Optic Transceiver LC Connector 550m 850nm DDM Cisco Meraki M

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty. The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550m (1804 ft).Technical Specifications:Wavelength: 850nmMaximum Data Transfer Rate: 1.25 GbpsType: Multi Mode FiberConnection Type: LC ConnectorMaximum Transfer Distance: 550m (1804 ft)MTBF: 1,967,709 hoursPower Consumption: Less than 1.2 WattsDigital Diagnostics Monitoring (DDM): YesThis SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

Features Summary

• Reliable connectivityThe Cisco Meraki MA-SFP-1GB-SX supports robust wired connectivity through its Ethernet 1000Base-SX cabling type, ensuring consistent performance for demanding networking tasks.
• Enhanced diagnostic capabilitiesThis module features Digital Diagnostics Monitoring (DDM) and Digital Optical Monitoring (DOM), providing critical insights into module performance and helping to maintain optimal operation.
• Wide environmental rangeWith an operational temperature range from 0°C to 70°C and humidity levels of 5% to 95%, this module is capable of performing reliably in diverse conditions.
• Efficient data transmissionThe full duplex mode allows for simultaneous two-way data transmission, significantly improving overall network efficiency.
• Compliance with industry standardsThe module meets several standards including IEEE 802.3z, UL, FCC, RoHS, and MSA, ensuring quality and compatibility within professional networking environments.
