Elara StarTech.com 4 Port Gigabit PoE (Power Over Ethernet) Card

Overview

Range/Series Overview

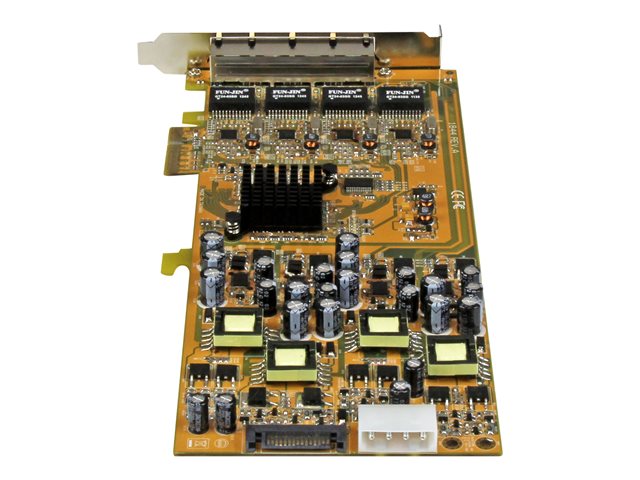

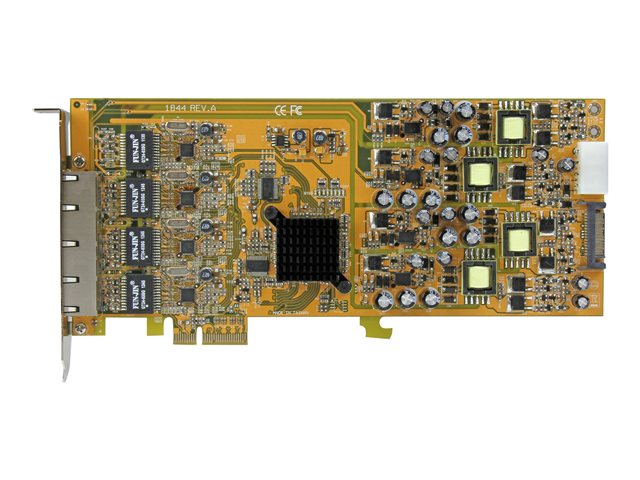

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.Add 4 Gigabit Power over Ethernet ports to a PCI Express-enabled computer. The ST4000PEXPSE 4-Port PoE NIC lets you add four Gigabit Power over Ethernet ports through a single PCI Express slot. Each port can provide up to 25.5W of power, combining network data and power over a single Ethernet cable for reduced cable clutter and added convenience for remote PoE devices.The PCI express PoE card supports the IEEE 802.3at (Type 1 and 2) standard for Power Sourcing Equipment (PSE), and can deliver up to 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and data connection for PoE devices such as IP cameras, IP phones or wireless access points.Suitable for any standard profile PCIe-enabled client, server or workstation, the PoE network card supports features such as Jumbo Frames (up to 9KB), VLAN tagging and Wake on LAN (WoL).

Features Summary

• Reliable connectivityThis network card interfaces via PCI Express x4, ensuring stable wired connections with speeds up to 1 Gbps and compliance with multiple networking standards including IEEE 802.3.
• Flexible power deliveryCapable of PoE/PoE+ delivery, this card eliminates the need for additional power sources by powering devices directly through the network cable.
• Durable designWith an operating temperature range from 0°C to 55°C and capable of handling humidity levels from 10% to 90% (non-condensing), this network card is built to perform in various environments.
• Enhanced performanceThe card supports Jumbo Frames and features a 48KB packet buffer, allowing efficient data handling for intensive applications.
• Easy installationThe plug-in design simplifies integration into existing systems while the auto-uplink feature automatically adjusts for seamless network configuration.
