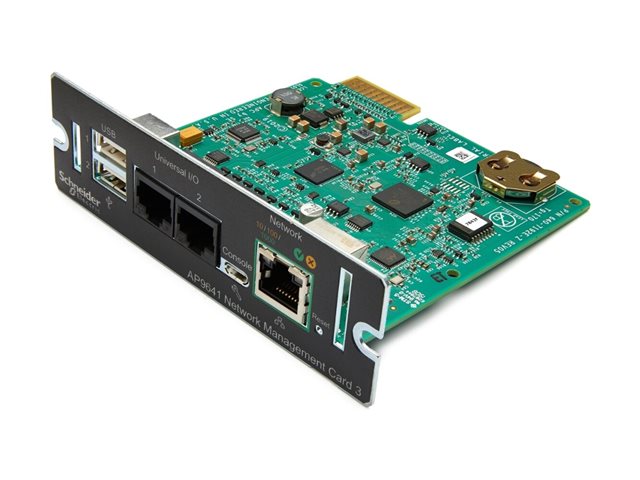

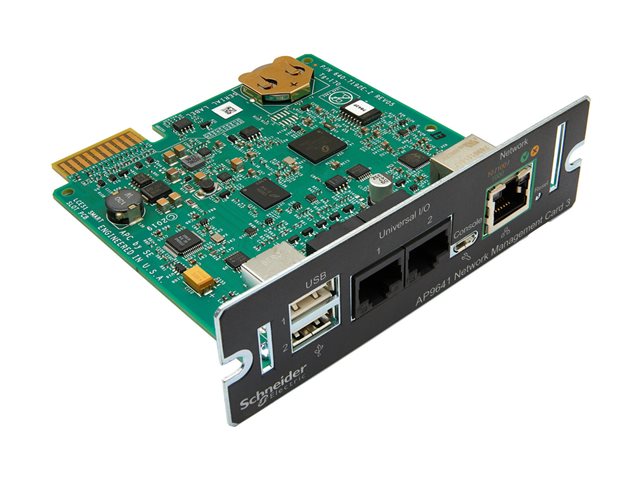

Elara APC Network Management Card 3 With PowerChute Network Shutdown & Environmental Monitoring

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.The Network Management Card 3 enables essential and secure remote monitoring and management of a UPS, giving you mission-critical visibility. The included Universal I/O (UIO) ports enable support for environmental monitoring. The high-speed processor provides a fast and powerful experience offering Gigabit Ethernet connectivity and simultaneous multiple user logins to the easy-to-use web user interface or Command Line Interface. Take proactive actions and troubleshoot easily with detailed data and event logging for timely resolution. Advanced technology and features keep sensitive data secure with the newest and best-in-class security compliance. The Network Management Card includes a 1-year Secure NMC Subscription which provides access to the latest firmware which is independently certified to the IEC 62443-4-2 standard. Integrates with EcoStruxure IT for efficient management of your equipment, PowerChute Network Shutdown for graceful shutdown, unattended start-up and VM migration options for disaster avoidance and business continuity, and with other SNMP-enabled systems.

Features Summary

• Multiple user accessSupports simultaneous web browser access for up to 8 users and network command line interface access for up to 3 users
• Multiple language supportWeb browser interface available in English, French, Russian, Chinese, Japanese, Korean, German, Italian, Spanish, Portuguese
• UPS Firmware UpdateUser friendly mechanism to remotely and seamlessly update UPS firmware via the web browser interface (SMX, SMT and SRT Smart-UPS only).
• Smart Battery Management SupportDetailed battery information including battery cartridge parameters provides early-warning fault analysis to simplify management of the entire battery system (SRT Smart-UPS only).
• Modbus TCP SupportSupports reporting UPS information to Building Management Systems or other third party management systems via Modbus TCP.
• BACnet/IP Support for Smart-UPSSupports reporting UPS information to Building Management Systems or other third party management systems via BACnet/IP (BTL certified) (Single Phase Smart-UPS only)
• Compatible with Smart-UPSCompatible with Smart-UPS. lt/ /a gt/
• Root of Trust SupportSupports Secure Boot with Root of Trust for enhanced Security.
• Gigabit Ethernet SupportSupports faster Communication at 1 Gbps (Gigabit per second) over Network.
• Micro-USB based Console SupportFor faster and easier Troubleshooting and Configuration.
• Command line interfaceOffers simultaneous remote management access through Telnet and SSH
• Standard UPS RFC 1628 MIB CompatibleMake UPS information available to your preferred network, server or enterprise management system by forwarding SNMP traps (events) using RFC 1628 MIB.
• Device EncryptionSecurely connect via HTTPS/SSL, SSH (up to 2048-bit encryption), SNMPv3
• IPv6 SupportCapable of operating on a network using IPv6 protocol
• Expandable Input and Output PortsSupports the Temperature Sensor, Temperature and Humidity Sensor and Dry Contact I/O Accessory
